The installation of braille signage is a critical component in ensuring accessibility for individuals with visual impairments. Adhering to the Building Code of Australia (BCA) and the Disability Discrimination Act (DDA) guidelines is essential for compliance and to promote inclusivity in public and private spaces.
According to the BCA, specifically reference D3.6, braille signage must be installed at specific heights to ensure they are easily accessible. Signs must be located no less than 1200mm and no higher than 1600mm above the finished floor.
This height range accommodates the majority of users, including those who may be seated in a wheelchair.

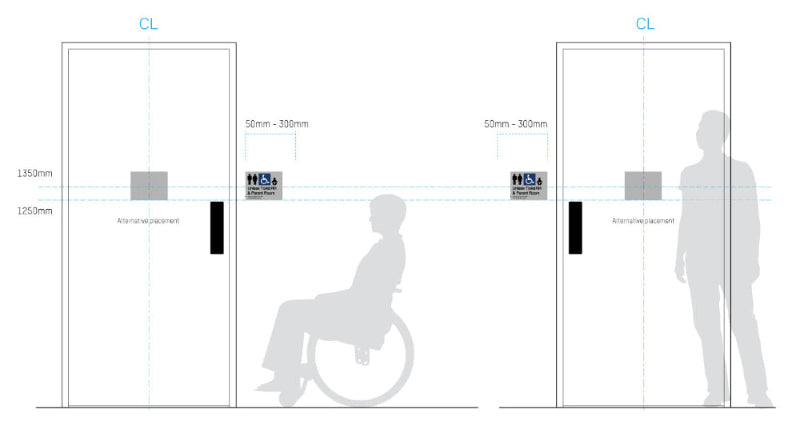

Signs identifying rooms containing features or facilities listed in D3.6 must be located:
1. On the wall on the latch side of the door with the leading edge of the sign located between 50mm and 300mm from the architrave
2. In the event of insufficient latch side dimension, a sign may be placed on the non-latch side of the door
3. Where (i) and (ii) is not possible, the sign may be placed on the door itself.
